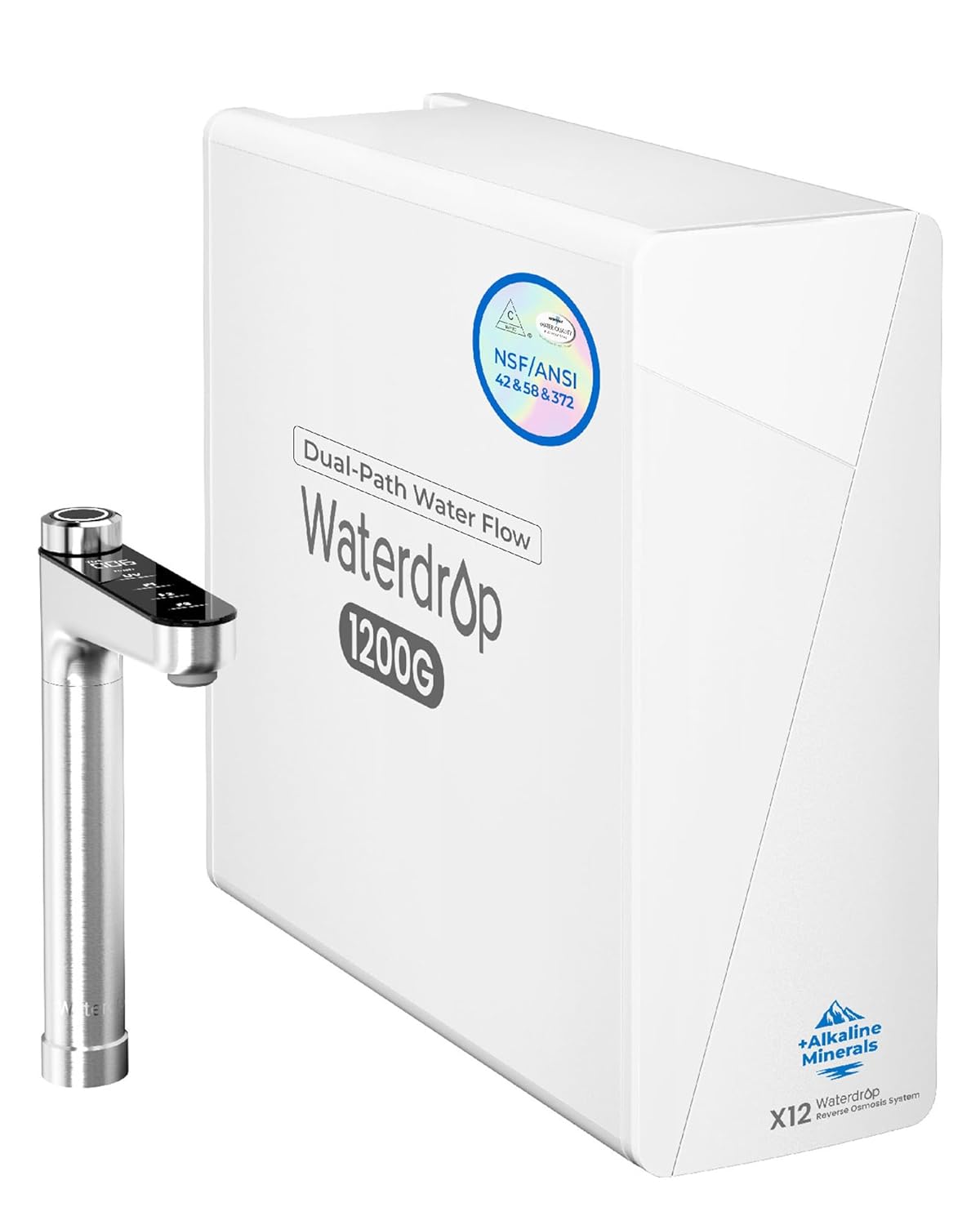

Waterdrop WD-X12
1,200 GPD • 11-Stage • NSF 58 • 3:1 Ratio • Smart Faucet • UV-C
Affiliate links — we earn a commission at no extra cost to you.
The fastest under-sink RO most households will ever need
At 1,200 GPD, the X12 produces more water in a day than most families use in a week from their RO tap. The 3:1 drain ratio is the best efficiency available in this product class. The 16-layer membrane and NSF/ANSI 58 certification back up the performance claims with independent verification — including SimpleLab Tap Score lab testing showing 100% reduction of lead, uranium, and disinfection byproducts. It was the featured water system at the World Coffee Championships, which tells you where it sits in the performance hierarchy. For most households of 1–5 people, the X12 is the right choice over the X16 — the extra capacity and 18-layer membrane of the X16 are overkill unless you have a large household or want alkaline mineralization as a standard feature.
Full Specifications
| Model | WD-X12 |
| Flow rate | 1,200 GPD / 0.83 GPM (at 77°F, 30 PSI) |
| Cup fill time | ~4 seconds (6 oz cup) |
| Filtration stages | 11-stage, 16-layer RO membrane |
| Membrane pore size | 0.0001 micron |
| Pure-to-drain ratio | 3:1 (3 gallons purified per 1 wasted) |
| TDS rejection | 90%+ under standard conditions |
| Lead reduction | 99% (NSF 58 certified) |
| Certifications | NSF/ANSI 58 • NSF/ANSI 372 • IAPMO R&T |
| UV-C sterilization | Yes — point-of-dispense, auto activates |
| Smart faucet | Yes — LED display, TDS sensor, rotary volume control, 120° rotation |
| Auto self-flush | Yes — after 10 min idle (disableable) |
| Dimensions | 18.2” L × 6.25” W × 16.72” H (horizontal install) |
| Min cabinet depth | 20.2” required |
| Feed water pressure | 14.5–87 PSI |
| Feed water temp | 41–100°F |
| Max feed TDS | 750 ppm |
| Max hardness | 7 grains per gallon |
| Chassis color | White (silver-white smart faucet) |
| Alkaline option | Available as separate Alkaline model (adds remineralization) |
| Warranty | 2 years • 30-day money-back • lifetime technical support |
| Plumbing required | Yes — cold water line tap + drain saddle + dedicated power outlet |
What the 1,200 GPD Rating Actually Means
Most under-sink RO systems produce 50–400 GPD. The G3P600 — one of the fastest countertop systems available — produces 600 GPD. The X12 at 1,200 GPD is operating in a completely different performance tier. At 0.83 GPM, a 6-ounce cup fills in about 4 seconds. A 32-ounce pitcher fills in under 40 seconds. You will never wait for the X12 to catch up to your household’s demand.
This is why Waterdrop chose the X Series for the World Coffee Championships — professional baristas dispensing precise, consistent water volumes for competition-grade coffee extraction need a system that matches the pace of professional service, not a residential system that refills a tank between uses.
The 3:1 Waste Ratio — Why It Matters
For typical household use of 2–3 gallons per day from the RO tap, the X12 sends 0.67–1.0 gallons to drain — a negligible amount on a water bill. The 3:1 ratio matters most at high throughput: if you’re running large volumes for cooking, beverages, or a home business, the efficiency compounds.
11-Stage Filtration — What It Removes
Independent SimpleLab Tap Score laboratory testing in Westminster, CO confirmed 100% reduction of:
- Lead
- Uranium
- Disinfection byproducts (3 types)
- Cobalt
- Copper
- Molybdenum
- Zinc
- TDS (90%+)
- Arsenic
- Fluoride
- PFAS / PFOA / PFOS
- Heavy metals
- Chlorine & chloramines
- Microplastics, bacteria, viruses
Smart Faucet — How to Use It
The smart faucet is a standalone unit installed through a 1-inch hole in your countertop or sink deck. It has a rotary knob, LED display showing real-time TDS and filter status, and an integrated UV-C emitter that activates during every dispense.
| Action | Result |
|---|---|
| Rotate knob | Wakes display; scrolls through volume presets (5–64 oz or 999 for continuous) |
| Press knob | Starts dispensing at selected volume; press again to stop mid-cycle |
| Idle 20 seconds | Press knob to dispense last selected volume without rotating first |
| TDS reading | Updates ~2 seconds after flow begins; most stable after 50 seconds continuous flow; normal fluctuation ±10% |
Filter Replacement Schedule
| Filter | Interval | Flush After |
|---|---|---|
| F1 — Composite Pre-Filter | 6 months / 600 gal | 5 min |
| F2 — Pre-Filter | 6 months / 600 gal | 10 min |
| F3 — RO + Carbon Post-Filter | 12 months / 1,200 gal | 30 min (discard output) |
Filter Replacement Procedure
Installation Overview
The X12 uses color-coded tubing and push-to-connect fittings throughout. Plan for 1–3 hours for a first-time installer.
| Tubing | Color | Connection |
|---|---|---|
| Feed water | White | Cold water supply saddle valve → INPUT port |
| Pure water | Blue | FILTERED port → smart faucet |
| Drain | Red | WASTE port → drain saddle on drainpipe |
Quick-connect fittings: push tubing to the 0.8-inch depth mark, then engage the blue lock clip. To disconnect: remove lock clip first, press release sleeve, then pull tubing. Never pull without pressing the sleeve — this permanently damages the fitting.
Fault Codes
| Code | Meaning | Resolution |
|---|---|---|
| E1 | No water / low inlet pressure | Check cold water supply valve is open; verify inlet pressure 14.5–87 PSI; check for kinked inlet tubing |
| E2 | Leak detected | Inspect all push-connect fittings and drain saddle; verify lock clips are engaged; dry all connections, restart |
| E3 | High TDS — RO membrane performance issue | Check F3 filter life indicator; flush system 30 min; if TDS remains high after flush, replace F3 |
| E4 | Faucet connection error | Check faucet power cord connection at unit; verify blue pure water tubing is fully seated at faucet port; power off and restart |
X12 vs X16 — Which One to Buy
| Feature | X12 | X16 |
|---|---|---|
| Output | 1,200 GPD / 0.83 GPM | 1,600 GPD / 1.11 GPM |
| Cup fill (6 oz) | ~4 seconds | ~2 seconds |
| Membrane layers | 16-layer | 18-layer |
| Alkaline mineralization | Optional (Alkaline model) | Standard (all models) |
| Chassis color | White | Black |
| Best household size | 1–5 people | 5–8+ people |
| Price | Lower | Higher |
For most buyers: the X12. At 1,200 GPD, it fills a 6-ounce cup in 4 seconds — any slower and you’d notice; any faster is imperceptible. The X16’s advantages (2-second fill, 18-layer membrane, standard alkaline) matter for large households or buyers who specifically want alkaline remineralization without a separate upgrade.
Waterdrop WD-X12 — 1,200 GPD Under-Sink Tankless RO
11-Stage • 16-Layer Membrane • 3:1 Ratio • Smart Faucet • NSF 58 • 2-Year Warranty
