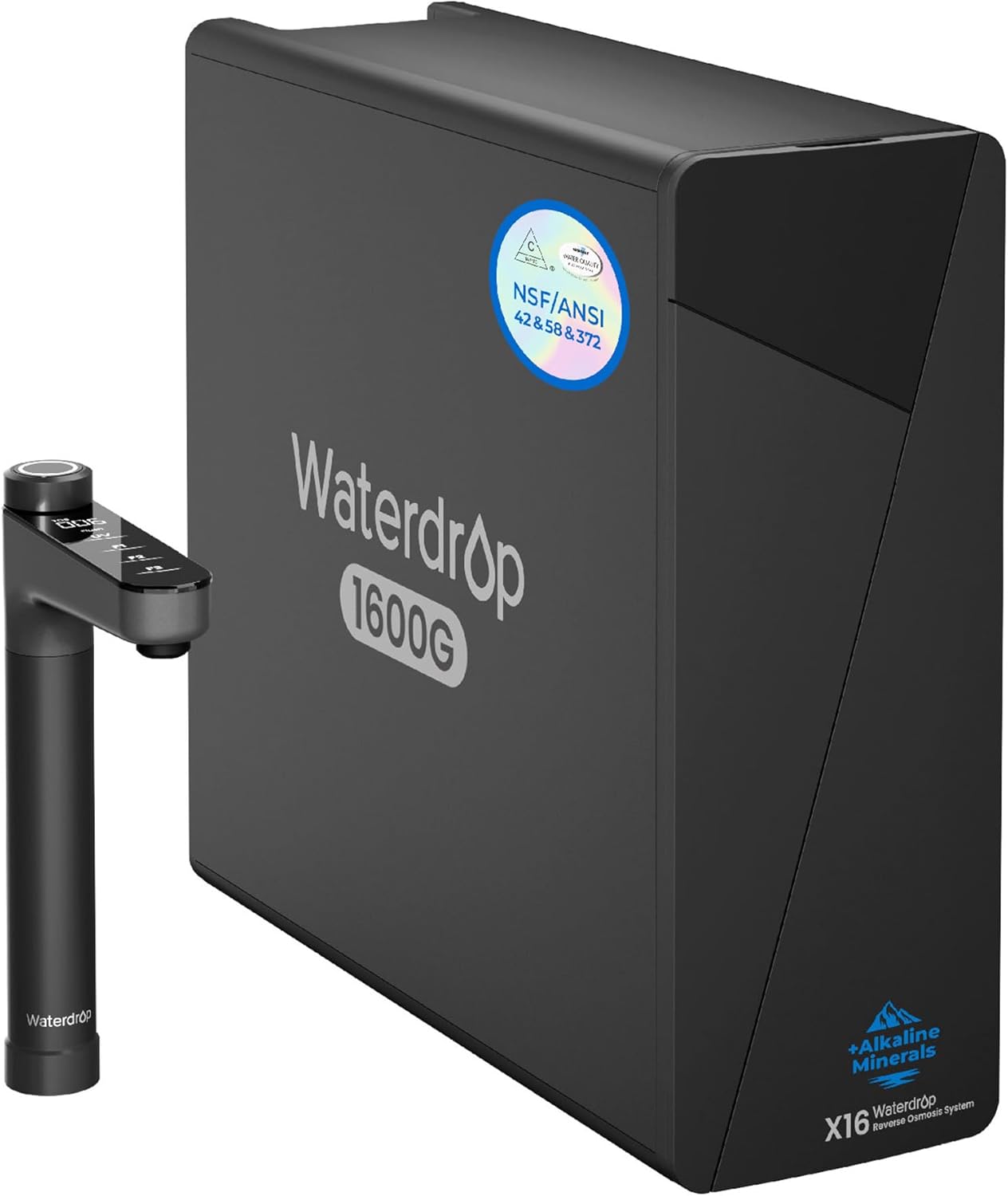

Waterdrop WD-X16
1,600 GPD • 18-Layer Membrane • Alkaline Standard • NSF 58 • UV-C
Affiliate links — we earn a commission at no extra cost to you.
The fastest residential under-sink RO — and the only one where alkaline is standard
At 1.11 GPM the X16 fills a 6-ounce cup in 2 seconds. The Gadgeteer confirmed a 16-ounce glass in under 7 seconds. That’s not meaningfully faster than the X12 for most uses — but the X16’s real differentiator is PCC alkaline mineralization as standard equipment in every configuration, not an optional upgrade. The 18-layer membrane adds redundancy over the X12’s 16-layer unit. The matte-black chassis is the aesthetic choice for dark or contemporary kitchens. For large households who would otherwise buy the X12 Alkaline model anyway, the X16 makes more sense. For 1–5 person households without a specific need for alkaline water, the X12 at lower cost is the better call.
Full Specifications
| Model | WD-X16 |
| Flow rate | 1,600 GPD / 1.11 GPM (at 77°F, 30 PSI) |
| Cup fill time | ~2 seconds (6 oz cup) |
| Filtration stages | 11-stage, 18-layer RO membrane |
| Membrane pore size | 0.0001 micron |
| Pure-to-drain ratio | 3:1 |
| TDS rejection | 90%+ under standard conditions |
| Alkaline mineralization | PCC Standard — included in all X16 configurations |
| Certifications | NSF/ANSI 58 • NSF/ANSI 372 • IAPMO R&T |
| UV-C sterilization | Yes — point-of-dispense, auto activates |
| Smart faucet | Yes — LED display, TDS sensor, rotary volume control, matte-black |
| Dimensions | 18.2” L × 6.25” W × 16.72” H |
| Weight (packaged) | ~34 lbs — two-person install recommended |
| Min cabinet depth | 20.2” required |
| Chassis color | Matte black (matte-black smart faucet) |
| Input voltage | 110–240V (universal) |
| Feed water pressure | 14.5–87 PSI |
| Max feed TDS | 750 ppm |
| Warranty | 2 years • 30-day money-back • lifetime technical support |
18-Layer Membrane — What Two Extra Layers Actually Do
Each additional membrane layer in the X16 increases total filtration surface area, reduces the statistical probability of contaminant breakthrough, and adds structural redundancy to the filtration barrier. Think of it as extra insurance: at 1.11 GPM throughput, water passes through the membrane faster than at 0.83 GPM. The two additional layers compensate for that increased velocity by providing more filtration area per unit of time.
For buyers: both the X12 and X16 achieve 90%+ TDS rejection and 99% lead reduction. The 18-layer construction matters more in high-TDS source water scenarios or when you want maximum margin of safety, not just compliance with the minimum threshold.
PCC Alkaline Mineralization — What It Is and Why It’s in Every X16
RO filtration removes virtually all dissolved solids from water, including the natural calcium and magnesium that give water its mineral flavor and slightly alkaline pH. Pure RO water has a neutral-to-slightly-acidic pH and a flat, clean taste that some buyers prefer — and others find lacking compared to natural spring water.
PCC (Positive Charge Composite) is Waterdrop’s alkaline mineralization technology. After the RO membrane stage, the PCC filter reintroduces calcium and magnesium in a form described as highly bioavailable. The result: filtered water with a mildly alkaline pH and a natural mineral taste profile closer to spring water. This is included as standard equipment in all X16 configurations, whereas the X12 requires selecting the Alkaline model specifically.
Filter Replacement Schedule
| Filter | Interval | Flush After |
|---|---|---|
| F1 — Composite Pre-Filter | 6 months / 600 gal | 5 min |
| F2 — Pre-Filter | 6 months / 600 gal | 10 min |
| F3 — RO + Carbon Post + PCC | 12 months / 1,200 gal | 30 min (discard output) |
Fault Codes
| Code | Meaning | Resolution |
|---|---|---|
| E1 | No water / low inlet pressure | Check cold water supply valve; verify 14.5–87 PSI inlet pressure; check for kinked inlet tubing |
| E2 | Leak detected | Inspect all push-connect fittings; verify lock clips engaged; dry all connections; restart |
| E3 | High TDS | Note: X16 TDS is intentionally elevated by PCC alkaline stage. Check F3 filter life. If TDS is abnormally high beyond expected alkaline level, flush 30 min; replace F3 if still high. |
| E4 | Faucet connection error | Check faucet power cord at unit; verify blue pure water tubing fully seated; power off and restart |
Who Should Buy the X16
✓ Choose the X16 if…
- Large household (5–8+ people)
- You want alkaline water without selecting a special model
- You want the absolute fastest fill time available
- Black chassis suits your kitchen aesthetic
- You want the 18-layer membrane’s extra redundancy
- You entertain frequently or cook with RO water often
✗ Choose the X12 instead if…
- Household of 1–5 people
- You don’t need alkaline mineralization
- Budget is a consideration
- White chassis suits your kitchen better
- 4-second vs 2-second fill makes no practical difference to you
Waterdrop WD-X16 — 1,600 GPD Flagship Under-Sink RO
18-Layer Membrane • Standard Alkaline • 3:1 Ratio • 2-Second Fill • NSF 58
