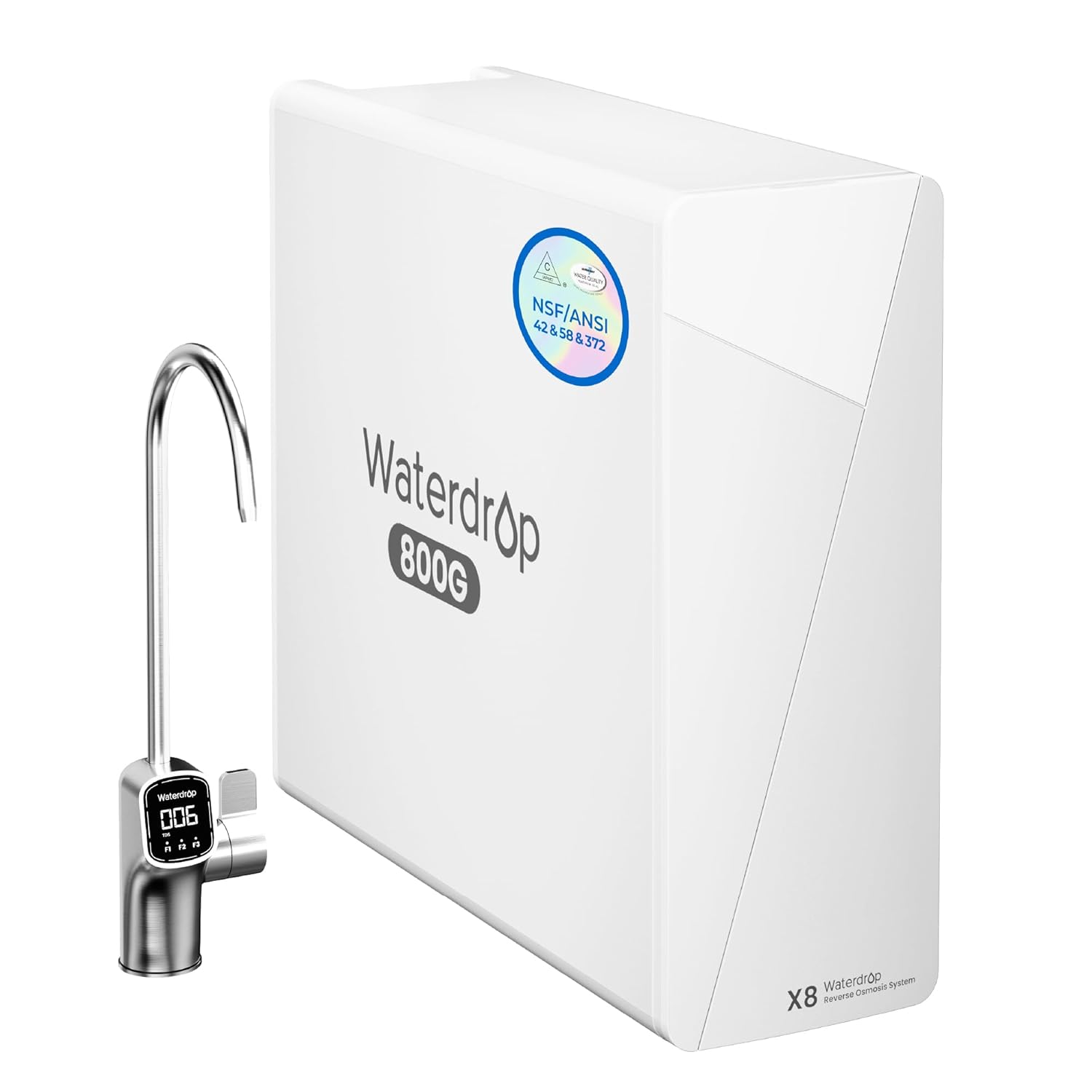

Waterdrop WD-X8
800 GPD • 9-Stage • NSF 42/58/372 • 2:1 Ratio • UV-C • Smart Faucet
Affiliate links — we earn a commission at no extra cost to you.
The right under-sink RO for 1–3 person households who want NSF-certified performance without X12/X16 pricing
The X8 brings the core X Series platform — tankless design, 16-layer 0.0001-micron membrane, NSF/ANSI 42/58/372 triple certification, UV-C sterilization, smart TDS faucet — to a lower price point. For a 1–3 person household consuming 3–5 gallons per day, 800 GPD is more capacity than you’ll ever use. The honest trade-offs versus the X12: a 2:1 drain ratio instead of 3:1, a 5-second cup fill instead of 4 seconds, and an open/close faucet instead of a volume-preset knob. None of those differences affect daily use for most buyers. Independent testing confirmed 92–94% TDS reduction from municipal tap water and complete elimination of metallic taste and visible sediment from the first filter cycle. This is the model that makes high-performance X Series RO accessible.
Full Specifications
| Model | WD-X8 |
| Flow rate | 800 GPD / 0.56 GPM (at 77°F, 30 PSI) |
| Cup fill time | ~5 seconds (6 oz cup) |
| Filtration stages | 9-stage (10 in Alkaline model), 16-layer RO membrane |
| Membrane pore size | 0.0001 micron |
| Pure-to-drain ratio | 2:1 (2 gallons purified per 1 wasted) |
| TDS rejection | 90%+ standard; real-world 92–94% confirmed |
| Lead reduction | 99% (NSF 58 certified) |
| Certifications | NSF/ANSI 42 • NSF/ANSI 58 • NSF/ANSI 372 • IAPMO R&T • SGS tested |
| UV-C sterilization | Yes — point-of-dispense, auto activates on flow |
| Smart faucet | Yes — LED TDS display, filter life indicators, open/close flow control |
| Faucet control type | Open/close — no volume preset knob (differs from X12/X16) |
| Auto self-flush | Yes — after 10 min idle (disableable via F1 ×5) |
| Dimensions | 18.2” L × 6.25” W × 16.72” H (same as X12/X16) |
| Power draw | 2.5A (vs X12/X16 at 3.5A — wider electrical compatibility) |
| Min cabinet depth | 20.2” |
| Feed water pressure | 14.5–87 PSI |
| Feed water temp | 41–100°F (5–38°C) |
| Feed water TDS | Max 750 ppm • pH 6.5–8.5 • <1.0 NTU turbidity |
| Max hardness | 7 grains per gallon |
| Chassis color | White |
| Variants | Basic (WD-X8) • Alkaline (WD-X8-WAN) • Pro (dual-flow) |
| Water source | Municipal tap water only (well water requires upstream pre-filtration) |
| Warranty | 2 years • 30-day money-back • lifetime technical support |
Three X8 Configurations — Which One to Choose
Real-World Performance Data
Independent Water Filtration Pro hands-on testing and Home Depot verified owner reviews confirm consistent performance:
(from ~300 ppm source to 18–19 ppm)
X8 vs X12 vs X16 — Complete Comparison
| Feature | X8 | X12 | X16 |
|---|---|---|---|
| Output | 800 GPD | 1,200 GPD | 1,600 GPD |
| Cup fill (6 oz) | ~5 sec | ~4 sec | ~2 sec |
| Drain ratio | 2:1 | 3:1 | 3:1 |
| Membrane layers | 16-layer | 16-layer | 18-layer |
| Filtration stages | 9 (10 alkaline) | 11 | 11 |
| Faucet control | Open/close only | Volume preset knob | Volume preset knob |
| Power draw | 2.5A | 3.5A | 3.5A |
| NSF 42 certification | ✓ | ✓ | ✓ |
| Alkaline standard | Optional (Alkaline model) | Optional | Standard |
| Best for | 1–3 people | 2–5 people | 4–8+ people |
The 2:1 vs 3:1 drain ratio is the X8’s most meaningful disadvantage versus the X12. At 5 gallons per day of purified water use, the X8 sends 2.5 gallons to drain vs 1.67 gallons for the X12 — a 0.83 gallon/day difference. For high-volume households this compounds; for 1–2 person households it’s negligible on a water bill.
Filter Replacement Schedule
| Filter | Part No. | Interval | Post-Flush |
|---|---|---|---|
| F1 — Composite Pre-Filter | WD-F1G | 6 months / 600 gal | 5 min |
| F2 — Pre-Filter | WD-F2 | 6 months / 600 gal | 10 min |
| F3 — RO + Carbon Post-Filter | WD-F3 | 24 months / 2,200 gal | 30 min (discard) |
At 3–5 gallons per day use, most X8 households hit the 24-month time limit before the 2,200-gallon volume threshold on the F3 membrane. The indicator tracks both and alerts whichever comes first. Reset each indicator by holding the corresponding front panel button (F1, F2, or F3) for 7 seconds until the buzzer confirms.
Fault Codes — Full Reference
| Code | Meaning | Resolution |
|---|---|---|
| E02 | No water / low inlet pressure | Verify cold water supply valve is fully open; confirm 14.5–87 PSI inlet pressure; check for kinked white inlet tubing |
| E03 | Leak detected by internal sensor | Inspect all push-connect fittings at INPUT, FILTERED, and WASTE ports; verify blue lock clips are engaged; dry all connections; power off and restart |
| E04 | High TDS — RO membrane performance issue | Note: Alkaline model TDS is intentionally elevated. For Basic model: check F3 filter life; flush 30 min; replace F3 if TDS remains elevated after flush |
| E09 | Communication fault between faucet and main unit — X8 specific | Check faucet power cord connection at the FAUCET port on the rear of the main unit; ensure fully seated and dry; power off and on; contact Waterdrop support if persistent |
Installation — Pre-Checks & Key Notes
| Tubing | Color | Connection |
|---|---|---|
| Feed water | White | Cold water supply saddle → INPUT port |
| Pure water | Blue | FILTERED port → smart faucet |
| Drain | Red | WASTE port → drain saddle on drainpipe |
Who Should Buy the X8
✓ Right for you if…
- Household of 1–3 people
- Budget is a priority without sacrificing NSF certification
- Limited electrical capacity under the sink (2.5A draw)
- Want NSF 42 + 58 + 372 triple certification
- Want the X Series platform at the lowest entry price
- Apartment or condo — compact footprint
✗ Consider the X12 instead if…
- Household of 3–5 people with high daily volume
- The 3:1 drain ratio efficiency matters to you
- You want quantitative cup-volume dispensing on the faucet
- Higher throughput needed for cooking large batches
Waterdrop WD-X8 — 800 GPD X Series Entry RO
9-Stage 16-Layer Membrane • NSF 42/58/372 • UV-C • Smart Faucet • 2-Year Warranty
